N6YKE Closed Repeater R4
Dual Mode (FM/DMR) Repeater Blue Diamond Ridge
Lat: 36° 5' 4.5" Long: -115° 23' 10.1" Elev: 4820'
FM: Wideband (25 KHz) TX: 446.175 MHz RX: 441.175 MHz Tone: 146.2 Hz
Allstar Node: 46780 (Bubble Chart)
When Active DMR: Narrowband (12.5 KHz) TX 446.175 MHz RX: 441.175 MHz TS: 1 & CC: CC7

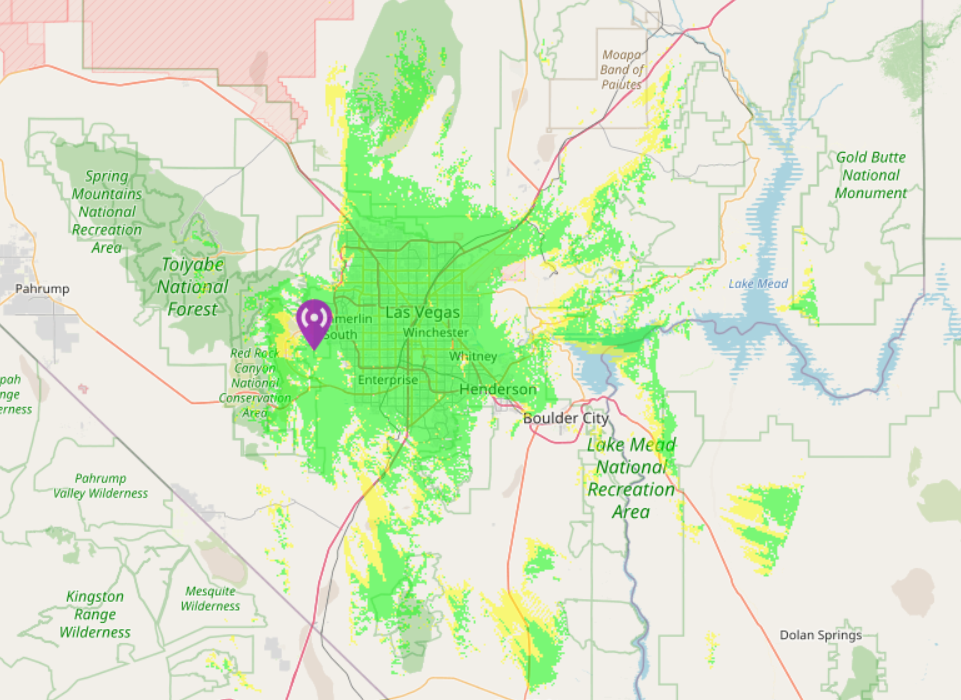

R4 LV Valley Coverage
(Click Picture to enlarge)

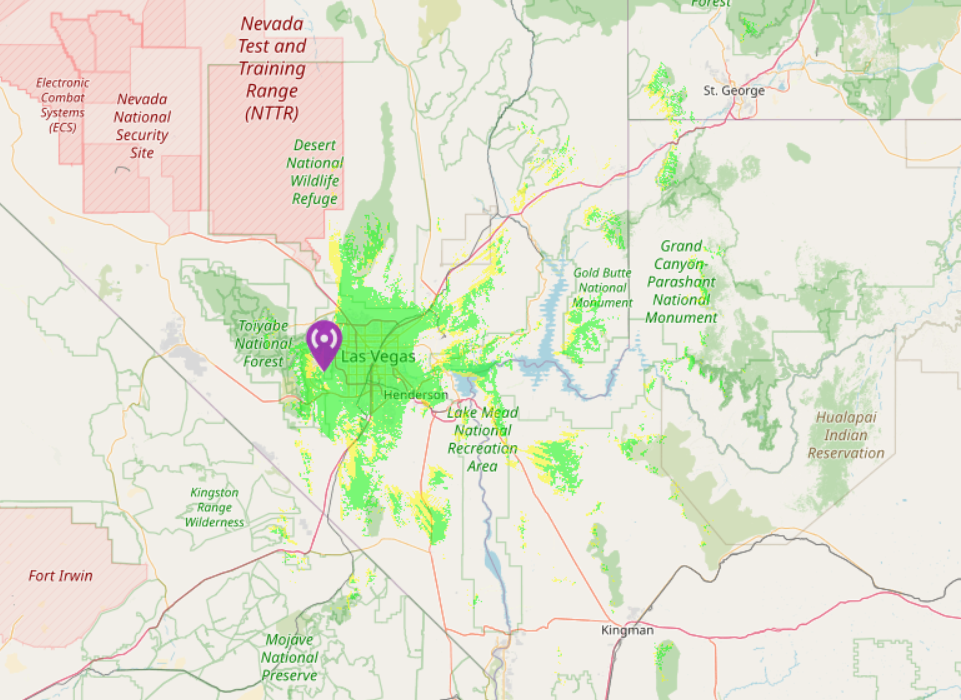

R4 Extended Coverage
(Click Picture to enlarge)

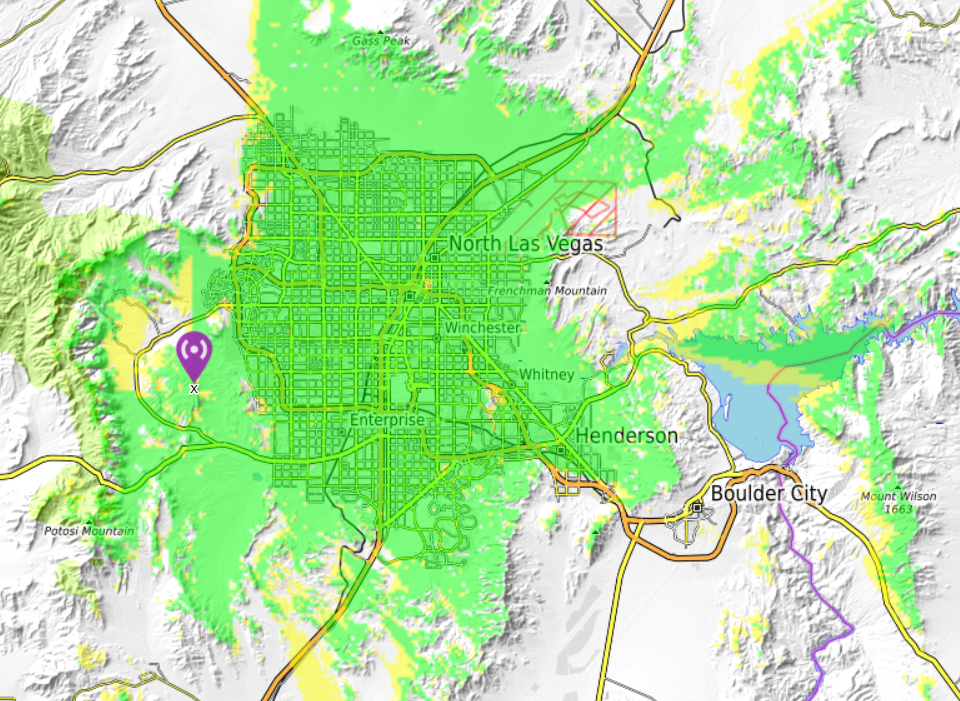

R4 LV Valley Coverage (TOPO View)
(Click Picture to enlarge)

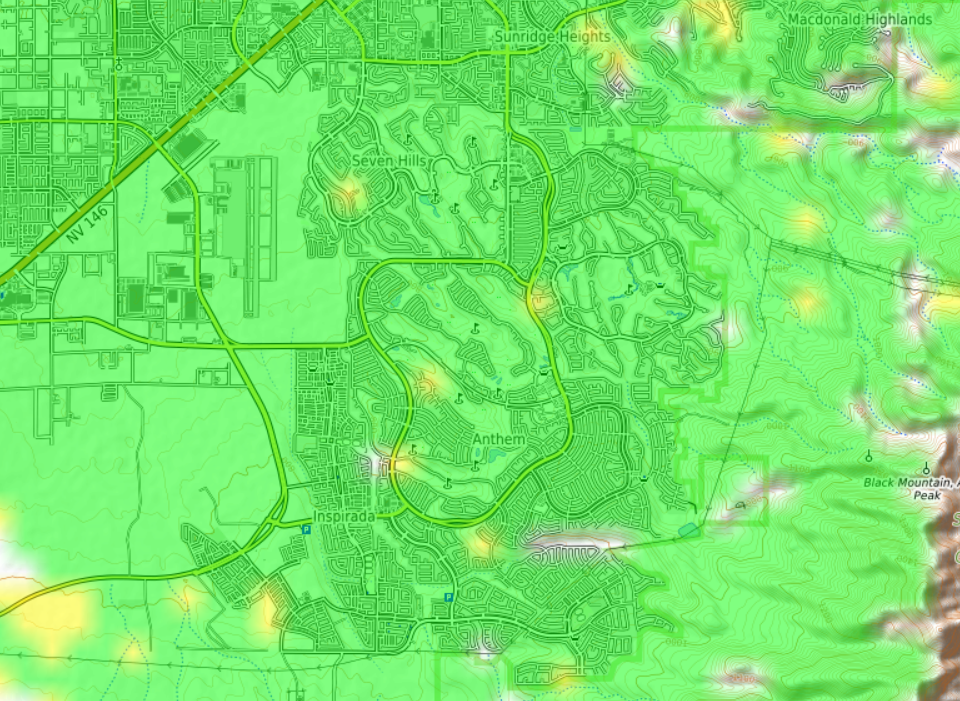

R4 Sun City Anthem Coverage
(Click Picture to enlarge)

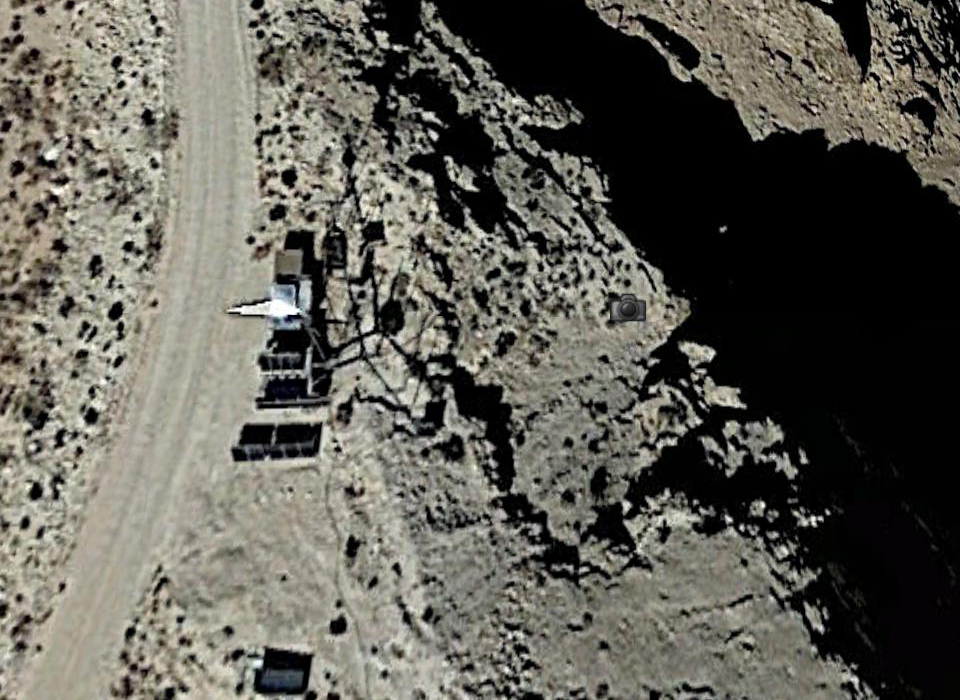

R4 Radio Site - Google Earth
(Click Picture to enlarge)

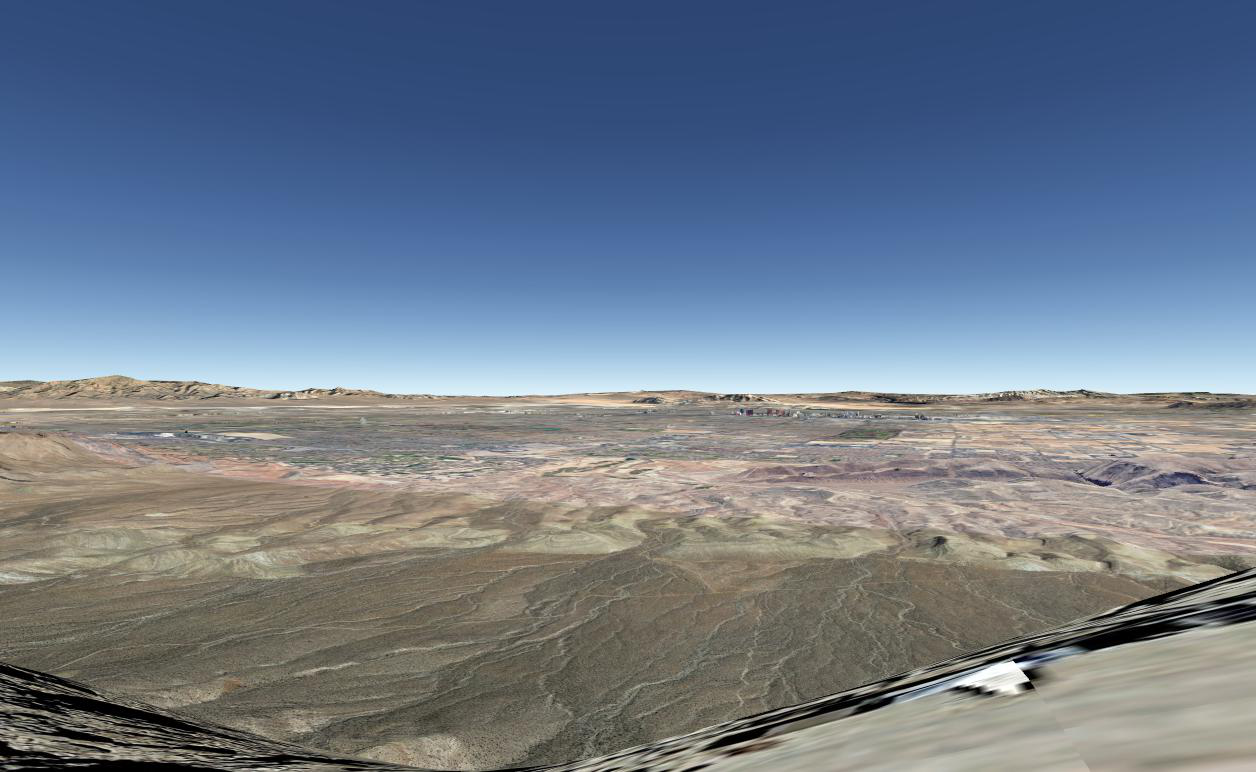

R4 LV Valley from Blue Diamond - Google Earth
(Click Picture to enlarge)

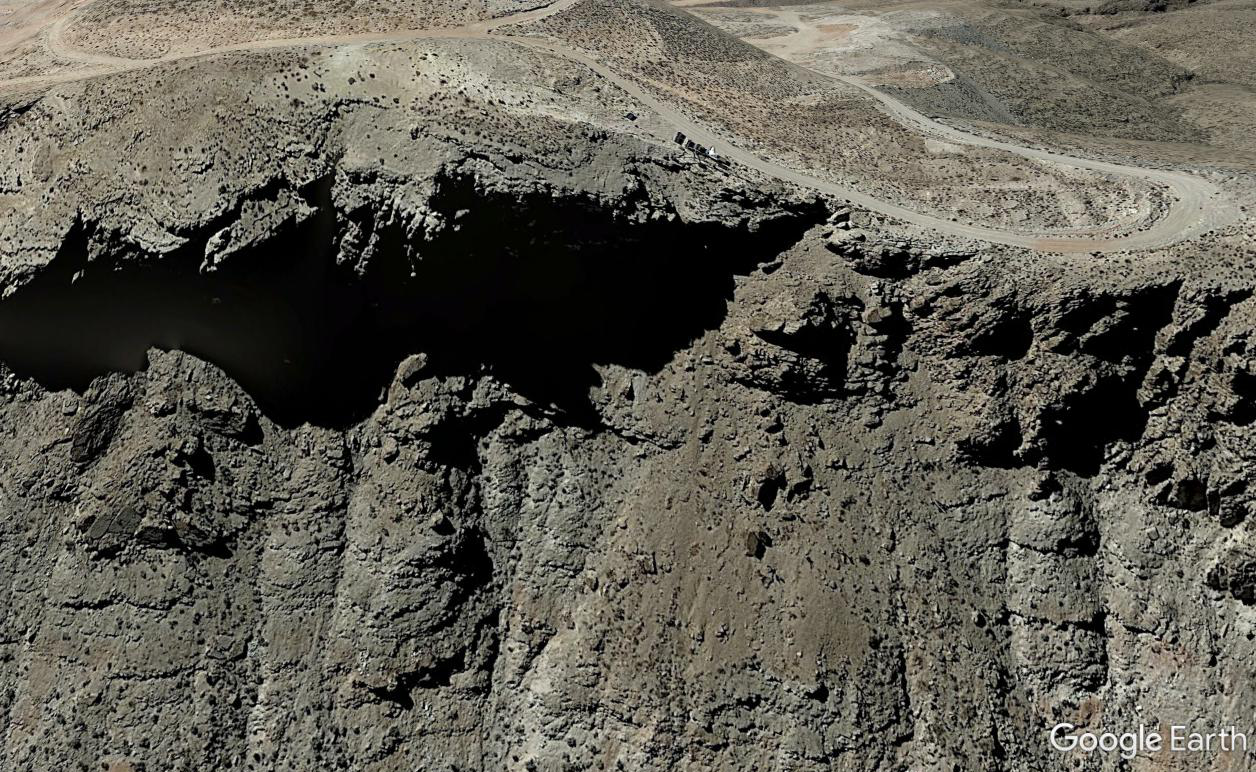

R4 Blue Diamond Ridge - Google Earth
(Click Picture to enlarge)
